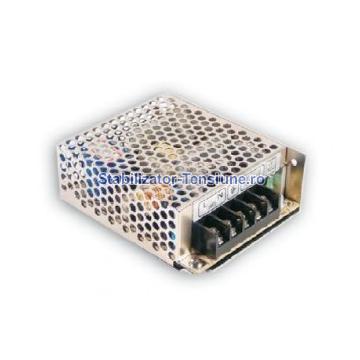

Sursa in comutatie AC-DC 24V 3.2A

Dc voltage: 24V
Rated currnet: 3.2A
Current range: 0 ~ 3.2A
Rated power: 76.8W
Ripple noise (max.): 120mVp-p
Voltage adj. range: 22 ~ 27.6V
Voltage tolerance: +/- 1.0%
Line regulation: +/- 0.5%
Load regulation: +/- 0.5%
Setup, rise time: 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
Hold up time (Typ.): 60ms/230VAC 14ms/115VAC at full load
Voltage range: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Frequency range: 47 ~ 63Hz
Efficiency (Typ.): 85%
Ac current (Typ.): 2A/115VAC 1.2A/230VAC
Inrush current (Typ.): COLD START 40A/230VAC
Leakage current: 2mA / 240VAC
Overload protection: : Hiccup mode, recovers automatically after fault condition is removed 110 ~ 150% rated output power
Over voltage: 27.6 ~ 32.4V
Protection type : Shut off o/p voltage, clamping by zener diode
Working temp.: -25 ~ +70 C (Refer to output load derating curve)
Working humidity: 20 ~ 90% RH non-condensing
Storage temp., humidity: -40 ~ +85 C, 10 ~ 95% RH
Temp. coefficient: +/- 0.03%/ (0 ~ 50 C )
Vibration: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety standards: UL60950-1, TUV EN60950-1 approved
Withstand voltage: l/P-O/P:3KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance: l/P-O/P, l/P-FG, O/P-FG:100M Ohms / 500VDC
Emi conduction radiation: Compliance to EN55022 (ClSPR22) Class B
Harmonic current: Compliance to EN61000-3-2,-3
Ems immunity: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, heavy industry level, criteria A
Mtbf: 265Khrs min. MlL-HDBK-217F (25 C )
Dimension: 129*97*38mm (L*W*H)

Mai multe pe site-ul producatorului Mean Well
