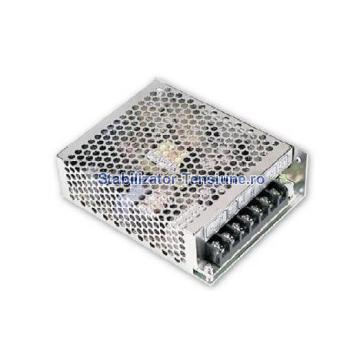

Sursa in comutatie AC-DC 12V 2A

Output number: CH1 CH2 CH3
Dc voltage: 5V 12V -12V
Rated currnet: 3A 2A 0.5A
Current range: 0.6 ~ 5A 0.2 ~ 3A 0.1 ~ 1A
Rated power: 45W
Ripple noise (max.): 100mVp-p 120mVp-p 120mVp-p
Voltage adj. range: CH1: 4.75 ~ 5.5V
Voltage tolerance: +/- 2.0% +/- 6.0% +/- 8.0%
Line regulation: +/- 0.5% +/- 1.0% +/- 1.0%
Load regulation: +/- 0.5% +/- 4.0% +/- 6.0%
Setup, rise, time: 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
Hold time (typ.): 70ms/230VAC 16ms/115VAC at full load
Voltage range: 85 ~ 264VAC 120 ~ 370VDC
Frequency range: 47 ~ 63Hz
Efficiency (Typ.): 72% 115VAC
Ac current (Typ.): 1.2A/115VAC 0.7A/230VAC
Inrush current (Typ.): COLD START 20A/115VAC 40A/230VAC
Leakage current: 3.5mA / 240VAC
Over load protection: : Hiccup mode, recovers automatically after fault condition is removed 105 ~ 150% /115VCA rated output power
Over voltage: CH1: 5.75 ~ 6.75
Protection type : Shut off o/p voltage, clamping by zener diode
Working temp.: -10 ~ +60 C (Refer to output load derating curve)
Working humidity: 20 ~ 90% RH non-condensing
Storage temp., humidity: -20 ~ +85 C, 10 ~ 95% RH
Temp. coefficient: +/- 0.03%/ (0 ~ 50 C ) on +5V output
Vibration: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety standards: UL60950-1, TUV EN60950-1 approved
Withstand voltage: l/P-O/P:3KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance: l/P-O/P, l/P-FG, O/P-FG:100M Ohms / 500VDC
Emi conduction radiation: Compliance to EN55022 (ClSPR22) Class B
Harmonic current: Compliance to EN61000-3-2,-3
Ems immunity: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
Mtbf: 305.6Khrs min. MlL-HDBK-217F (25 C )
Dimension: 129*98*30mm (L*W*H)

Mai multe pe site-ul producatorului Mean Well
