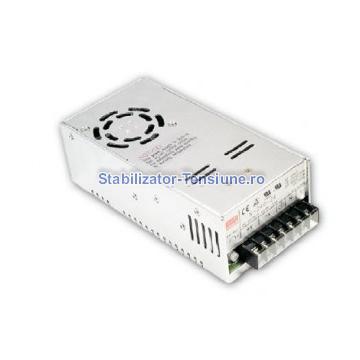

Sursa in comutatie AC-DC 12V 18A

Dc voltage: 12V
Rated current: 18A
Current range: 0 ~ 18A
Rated power: 216W
Ripple noise (max.): 150mVp-p
Output voltage adj. range: 10 ~ 14V
Voltage tolerance: plusmn; 1.0%
Line regulation: plusmn; 0.5%
Load regulation: plusmn; 0.5%
Setup, rise time: 1000ms, 20ms at full load
Hold uptime (Typ.): 36ms at full load
Voltage range: 88 ~ 132VAC / 176 ~ 264VAC auto switch 248 ~ 370VDC
Frequency range: 47 ~ 63Hz
Efficiency (Typ.): 82%
Ac current (Typ.): 5A/115VAC 2.5A/230VAC
Inrush current (Typ.): 15A/115VAC 30A/230VAC
Leakage current: 2mA/ 240VAC 105 ~ 135% rated output power
Overload: Protection type : Hiccup mode, recoversautomatically after fault condition is removed.
Protection: 14.4 ~ 16.8V
Over voltage: Protection type : Hiccup mode, recoversautomatically after fault condition is removed.
Function fan control, o.t.p.: RT1 40 FAN ON, 35 FAN OFF, 70 output shutdown -10 ~ +60 (Refer to output load derating curve)
Working temp.: 20 ~ 90% RH non-condensing
Working humidity environment storage temp., humidity: -20 ~ +85, 10 ~ 95% RH
Temp. coefficient: plusmn; 0.03% C (0 ~ 50 C)
Vibration: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards: UL60950-1, TUV EN60950-1 approved (7.5V Design refer to TUV EN60950-1)
Withstand voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety isolation resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Emc, emi conduction radiation: Compliance to EN55022 (CISPR22) Class B
Harmonic current: Compliance to EN61000-3-2,-3
Ems immunity: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, light industry level, criteria A
Mtbf: 179.3K hrsmin. MIL-HDBK-217F (25 )
Dimension: 190*93*65mm (L*W*H)

Mai multe pe site-ul producatorului Mean Well
