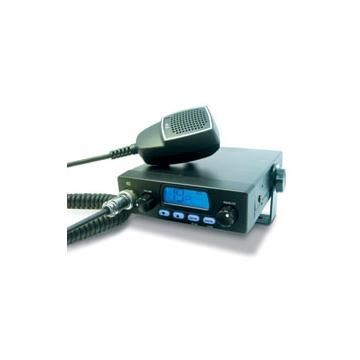

Statie radio TTi TCB-775, calibrat Constanta

40 Channels

26.965MHz-27.405MHz

F3E(FM), A3E(AM)

PLL Synthersizer

0.002%

-10 to +55`C

Plug-in Type

13.8V dc +- 15%

140(W) * 186(L)*37(H)

870g

SO-239 Type

MULTIPLE BANDS

4-10 WATTS OUTPUT POWER

AM/FM OPERATION

BEEP TONE ON/OFF

T.O.T(Timer Out Time)

BACKLIGHT DIMMER

EMERGENCY CHANNEL

QUICK CHANNEL UP/DOWN

SCAN

KEYPAD LOCK & REMOTE LOCK

BLUE ILLUMINATION

Specificatii tehnice:

Power Output : Duty cycle 10% 4Watts @13.8V DC

Modulation : AM : from 85% to 95%
FM : 1.8KHz +- 0.2KHz

Frequency Response : 300Hz to 3000Hz

Output Impedance : 50 ohms, Unbalanced

Harmonic Suppression : Less than -36dBm

current rain : AM Full Mod. 1.6A Max.

Receiving system : Dual conversion superheterodyne

IF Frequencies: Double Conversion 1st 10.695MHz

0.5uV for 20dB SINAD in FM Mode

Audio Output Power @10% THD : 2.0W @8 Ohm

Audio Distortion : LESS then 8% @ 1KHz

Image rejection : -53dBm

Adjacent Channel Rejection : -53dBm

Conducted Spurious : More than 60 dB

Frequency Response : 300 to 2500Hz

Built-in Speaker : 8 ohms,round

Squelch : Adjustable : Threshold less

than 1 microvolt.
