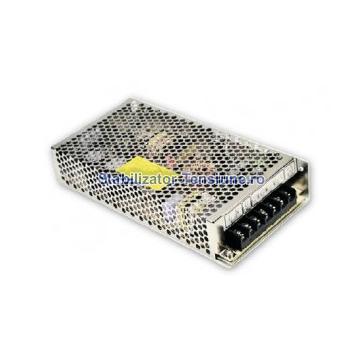

Incarcator de acumulatori 27.2V 12.5A 82.5Ah

Boost charge voltage: 28.8V
Float charge voltage: 27.2V
Voltage adj. range: 26 ~ 28.8V
Recommended battery capacity (amp hours): 40 ~ 125Ah
Battery type: Open Sealed Lead Acid
Output current: 12.5A
Voltage range: 90 ~ 132VAC 180 ~ 264VDC
Freqency range: 47 ~ 63Hz
Efficiency: 86%
Power factor: 0.65 (with P type) at 230VAC
Ac current: 7A/115VAC 3.5A/230VAC
Inrush current: COLD START 60A
Leakage currnet: 3.5mA / 240VAC
Working temp.: -20 ~ +60C (Refer to output load derating curve)
Wprking humidity: 20 ~ 90% RH non-condensing
Storage temp., humidity: -40 ~ +85C, 10 ~ 95% RH
Temp. coefficient: +/-0.05%/C (0 ~ 50C )
Dimension: 253*135*48.5mm(L*W*H)

Mai multe pe site-ul producatorului Mean Well
