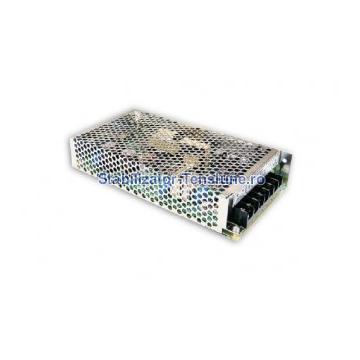

Convertor tensiune DC-DC SD-100D-24

DC voltage: 24V
Rated current: 4.2A
Current range: 0 ~ 4.2A
Rated power: 100.8W
Ripple noise: 150mVp-p
Voltage adj. range: 23 ~ 30VDC
Voltage tolerance: +/- 1.0%
Line regulation: +/- 0.2%
Load regulation: +/- 0.2%
Setup, rise time: 2s, 50ms(only D mode) at full load
Hold up time: 20ms(only D mode) at full load
Voltage range: B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC
Efficiency: 83%
DC current: 1.8A/96V
Inrush current: D:18A/96VDC
Leakage current: 0.75mA/120VAC(SD-100D)
Over load: 105 ~ 135% rated output power, Protection type : hiccup mode, recovers automatically after fault condition is removed
Over voltage: 31.5 ~ 37.5V/10% load, Protection type : Hiccup mode, recovers automatically after fault condition is removed
Working temp.: -10C ~ 60C (Refer to output load derating curve)
Working humidity: 20 ~ 90% RH non-condensing
Storage temp., humidity: -20C ~ 85C, 10 ~ 95% RH
Temp. coefficient: +/- 0.03%C (0 ~ 50C)
Vibration: 10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes
Safety standards: IEC60950-1 CB approved by TUV (for D type only)
Withstand voltage: I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistange: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/500VDC/25C/70% RH
Emi conduction radiation: Compliance to EN55022 (CISPR22) Class B
Ems immunity: Compliance to EN61000-4-2,3,4,6,8; ENV50204, light industry level, criteria A
Mtbf: 356.7K hrs min.(SD-100B) 355.5K hrs min.(SD-100C) 341.9K Hrs min.(SD-100D) MIL-HDBK-217F (25C)
Dimension: 199*98*38mm (L*W*H)
Packing: 0.65Kg
