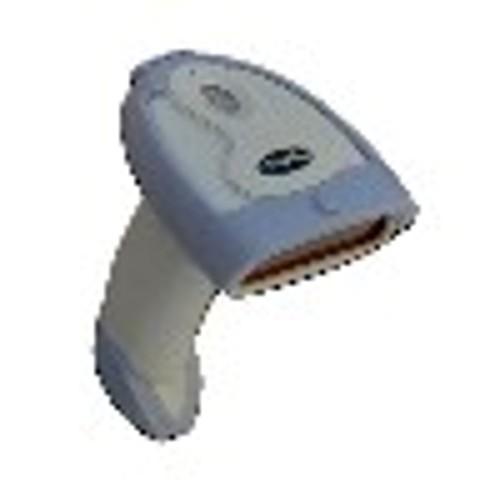

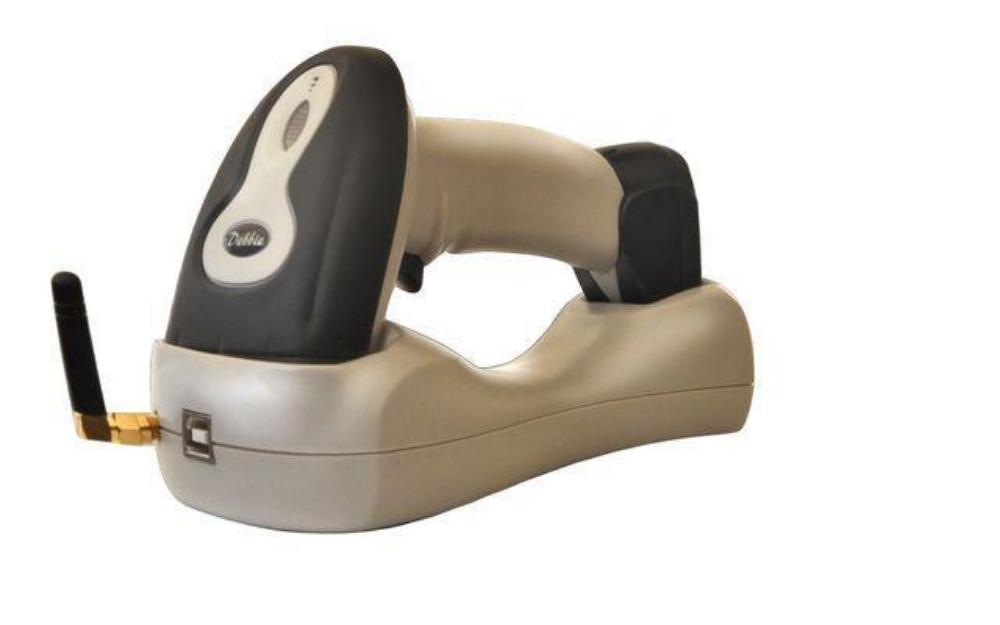

Cititor TC-9800

Caracteristici: Title
Parameter
Operating Channel
2.4Ghz
Communication Distance
30 - 50 M(outdoor)
Type of illuminant
650nm laser
Operation way
Hand-held or bracket-held installation
Bit Error Rate(BER)
1/ 8 million
Safety Performance
Meet the Grade INational Criteria for Laser Safety
Symbologies
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Coda bar,Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Zip Code etc.
Supported Interface
RS232,PS2 Keyboard,USB,etc.
Scanning Method
Automatic/ Manual
Resolution
3 mil
Depth of Field
10-800mm(pos0.9)
Decoding Speed
120 times/second
Reading Angle (pitch)
60°
Reading Angle (skew)
45
Operating Temperature
-20°C-45°C
Power Voltage
5V
Working Current
68mA
Static Current
48mA
Light Intensity
Daylight, 4000lux max
Electromagnetic Interference
Comply with en50081,part1 criteria
External Electromagnetic Interference Resistance
Comply with en50082,part1 criteria
Materials
ABS PC
Exterior Dimension
Length*Width*Height: Reader: 183mm*75mm*105mm
Weight
Reader: 195g;
