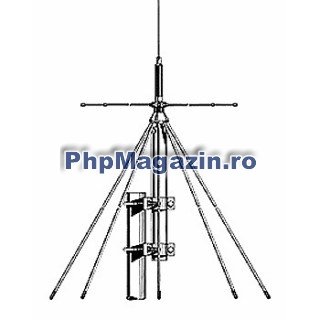

Antena Scannere Radio model Sirio SD-3000N

Wide-band discone antenna working on 300 - 3000MHz in reception and on many
amateur frequencies in transmission (70cm, 33cm, 23cm, 13cm). It is made of
stainless steel, chromed brass and anodized aluminium to guarantee the best
efficiency and performance. Easy to fit, it can be suitable for the installation
everywhere. Two versions are available: SD3000U with UHF-female connection, and
SD3000N with N female connection. Electrical Data: Type: Discone
Frequency Range
(RX band): 300 - 3000MHz
(TX band) at
VSWR
1980...3000MHz
Impedance: 50 ohms Unbalanced
Radiation(H-plane): 360
degree Ominidirectional
Polarization: Vertical
Gain: 0dBd - 2.2dBi
Max
Power: 200Watts
Feed System/Position: Direct/Center
Connection: SD3000N=N-female, SD3000U=UHF-Female Mechanical
Data: Materials: Aluminium, Chromed Brass, Stainless steel, Nylon
Wind
load/Resistance: 32N at 150Km/h/150Km/h
Wind Surface: 0.03m2
Height(approx.): 725mm
Weight(approx.): 830gr
Mounting Mast: Diameter 25 - 54mm Livrari in toata tara. Pret transport - 17 RON Se emite Factura! Produsul este NOU! Se ofera GARANTIE!
