AD Convertor video HDMI/ SDI-analog si SDI Cross

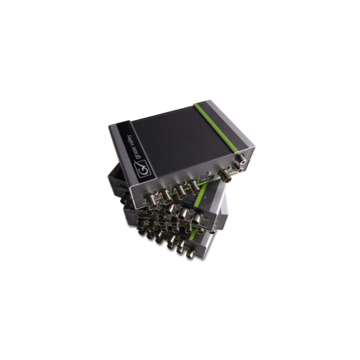

ADVC G2

HDMI & SDI to Analog & SDI Multi-Functional Converter/Upconverter with Frame Synchronizer
Like other members of the ADVC G-Series family, the ADVC G2 combines the latest conversion technologies in a compact 1/3 RU form factor.

Featuring HDMI and HD/SD-SDI (3G/1.5G support) for the inputs and HD/SD-SDI (3G/1.5G support), component, composite, S-Video, AES/EBU, and analog audio for the outputs, the new ADVC G2 plays the role of many converters for the price of one. The ADVC G2 also features 3G support, downconverting, and a frame synchronizer, which becomes very handy when, for example, connecting the SDI out to a switcher.

The ADVC G2 can be used as a monitoring device for HDMI and HD/SD-SDI sources, but it can also act as an HDMI to HD/SD-SDI (3G/1.5G support) converter.

The AES/EBU and analog audio outputs, used for audio de-embedding, are a welcome feature in most monitoring applications.

Key Features
Latest technologies all in one box:
Full 3G support (up to 60p)
Integrated HDMI input
Feature-rich at an affordable price:
Downconverter with manual on/off
Integrated frame synchronizer
Multi-purpose converter:
HDMI input for latest camcorder connections
Audio outputs for audio de-embedding

Specifications
Inputs: (3G) HD/SD-SDI, HDMI, reference

Input Formats:

1080i60/59.94/50
1080p60/59.94/50/30/29.97/25/24/23.98
1080psf/24/23.98
1035i60/59.94
720p60/59.94/50/30/29.97/25/24/23.98
480i/p 60/59.94
576i/p50

Outputs:
(3G) HD/SD-SDI, component, composite, S-Video, analog audio, AES/EBU

Output Formats:
1080i60/59.94/50
1080psf23.98/24
1080p60/59/59.94/50/30/29.97/25/24/23.98
1035i60/59.94
720p60/59.94/50/30/29.97/25/24/23.98
480i 59.94
576i50
